Mechanical specification

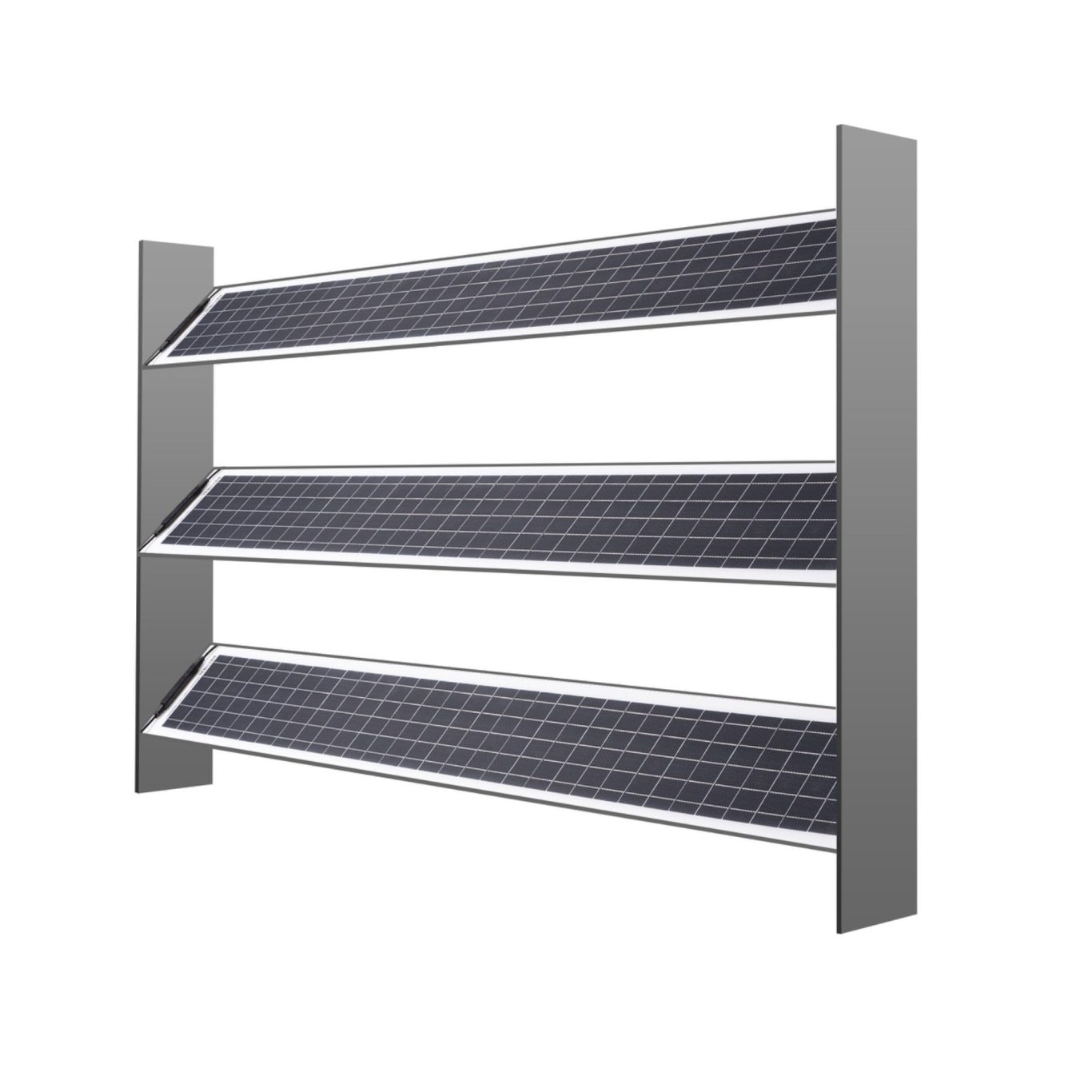

STP-20-4 Panel
Mechanical Specification.
Nominal Dimensions: 1,550 mm wide x 1,250 mm projection x 100 mm high.
Fixing Brackets: 2 per panel, galvanised steel, powder coated to customers choice of RAL finish.
Side Arm Mullions: 2 per panel, powder coated aluminium to match brackets.

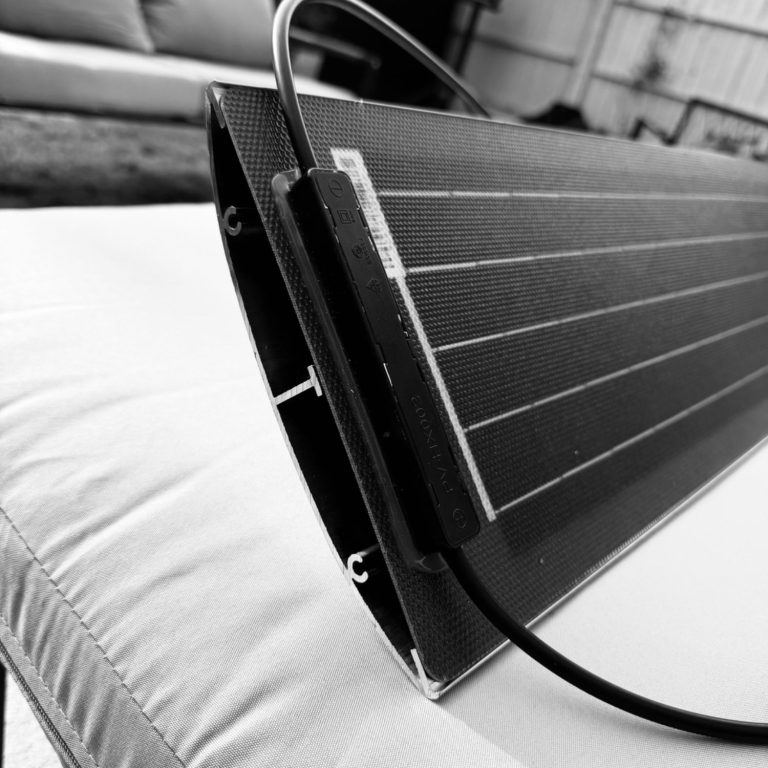

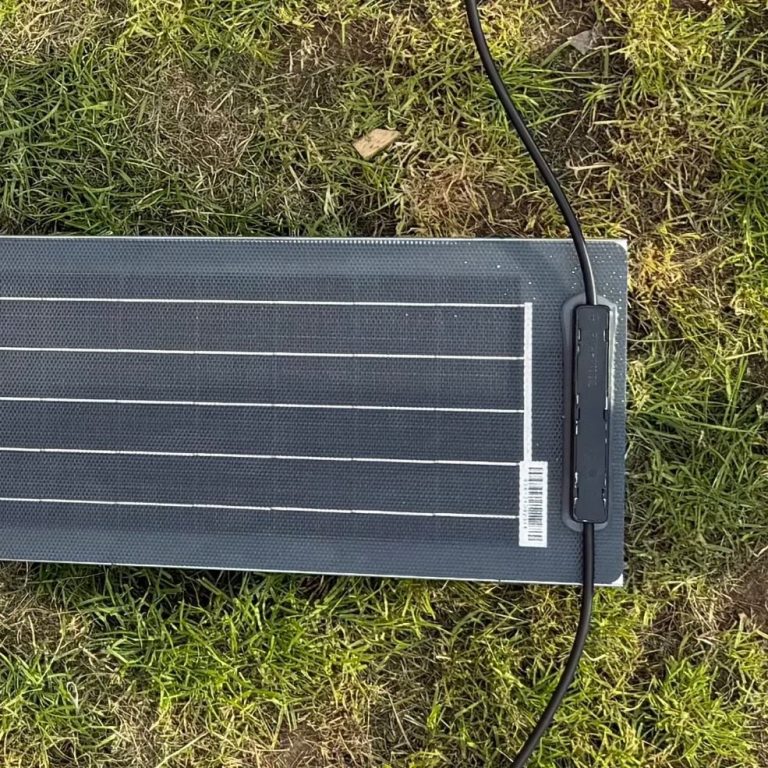

Louvre Blades: 4 x extruded aluminium profiles per panel, each measuring 1,540 mm long x 205 mm wide and powder coated to match brackets. Each with embedded photo voltaic cells across the top face
Weight: 20Kg per panel
Electrical specification
Electrical Specification.

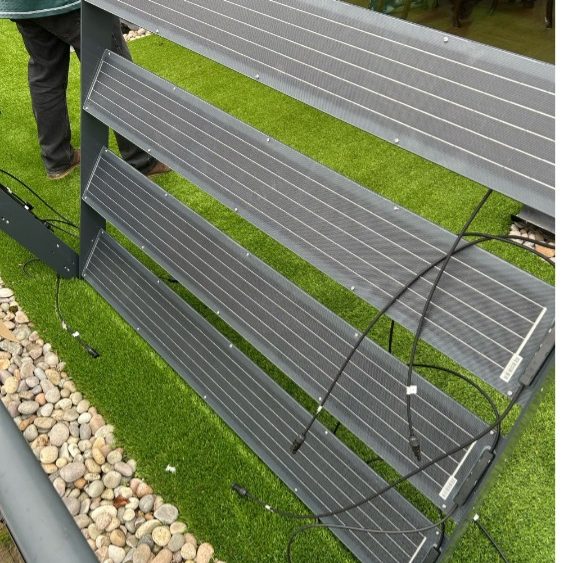

Louvre Blade Interconnection: All 4 blades connected in series to present 80v DC nominal per panel.
Panel Interconnection: Series and/or parallel connection, wired to present 400v DC max.
Power generation: 200 W max. per panel
General
The STP-20-4 panel is designed for use both in a stand-alone system configuration, or as part of a wider solar panel project. When installed as a stand-alone system, the DC power generated is stored in a battery storage system and then converted to AC power using an invertor.
The panel is compatible with most third-party invertor and storage systems and can integrate with existing systems with the use of additional hardware.
